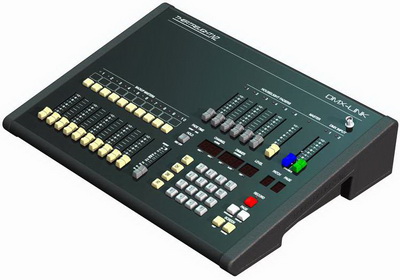

The Theatrelight DMX-Link can act as a powerful standalone desk, or as a backup companion to the Cuemaster, Scenemaster, and Nova consoles for use in larger lighting installations. The DMX-Link can store up to 100 back-up scenes of 1024 channels, either set up from the keyboard as a standalone desk, or recorded as DMX snapshots from the two DMX inputs in back-up mode. All 1024 channels can be proportionally soft-patched to 1024 dimmers. The desk's DMX input channels can also be used to snapshot levels from a special effects or moving lights control panel. Using the DMX-Link for on-line backup gives the reliability and security needed in lighting venues such as concert halls, TV studios and stadiums. Supplied with operation manual, dust cover, and SD card.
- Stand-alone or Backup, 1024 channel softpatch desk
- DMX mixing of 2 external DMX inputs
- Proportional soft-patching of 1024 channels to 1024 dimmers
- 4 independent soft-patch lists
- 10 pages of 10 Scenemasters for 100 back-up scenes of 1024 channels
- 6 independent House Light faders
- SD Card back up of all cue data
- VGA output for live monitoring of desk and on-screen Help
