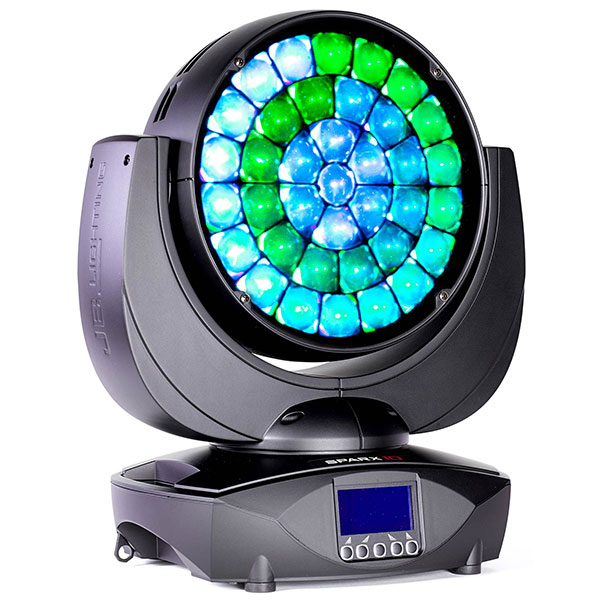

The Sparx 10 is equipped with 37 RGBW multichip LEDs and uniquely designed lenses that create stunning effects.
It exhibits a round light aperture, minimal struts between the lenses and a fully illumi- nated lighting field. Due to the size, the light-emitting surface is extremely impressive and ideal for the display of the countless patterns. The light beam is clearly defined - perfect for effect and illumination applications
Optics and Light Source
• 37 RGBW LEDs
• Optical zoom System 4°-40° (4°-30° at 1/2 peak, 8°-40° at 1/10 peak)
• highly efficient lens system
• round beam without gaps between the lenses Effects
• Individual LED control
• Sparkle-Effect for dynamic effects like a fire effect
• Various layers of effects can be combined freely for countless pattern/colour combinations
• Glow- and Colorspread-channel for additional colourmixing options
• separate CTC channel
• optimized colour mixing performance
• high resolution, stepless dimmer 0%-100%
• colour true dimming
• electronic strobe with pulse and random effects
Movement
• high resolution 3 phase stepping motors
• precise and fast movement
• low-noise, suitable for sound-sensitive applications
• 450° Pan/330° Tilt
Control
• DMX-512
• Integrated receiver for JB-Lighting Wireless DMX
• Illuminated graphic display, electronically rotatable
• Stand-Alone mode
Power Consumption
• Approx. 700W
Construction
• Compact housing
• LEDs individually exchangeable without soldering
• 3pin and 5pin connectors
• PowerCon in/out
• Temperature controlled fans
• Omega brackets for quick and comfortable mounting in any direction
Mechanical specification
• Size: w 404 x h 480 x d 265mm
• Weight: 12kg
