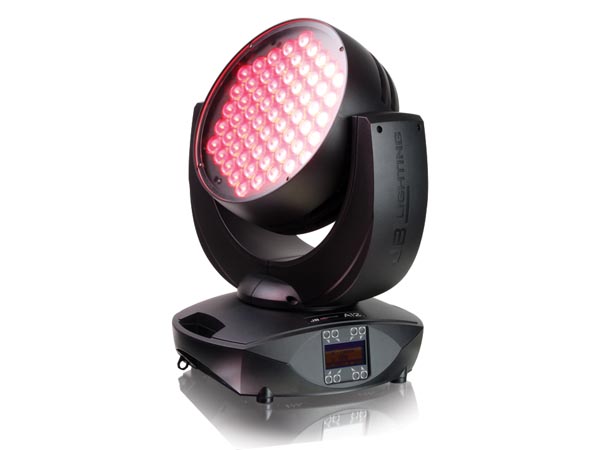

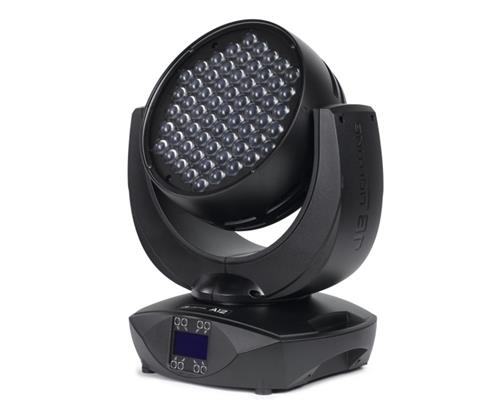

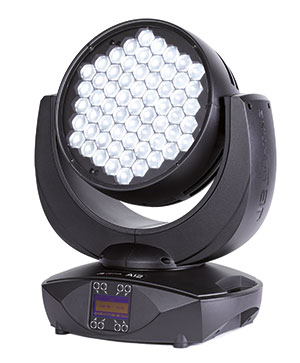

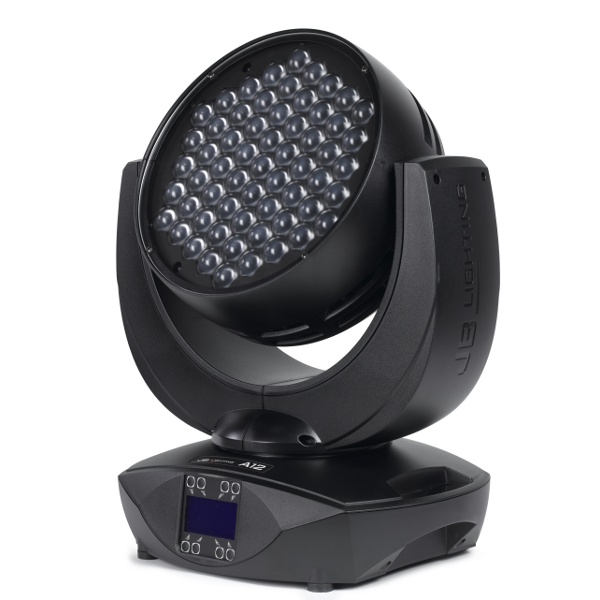

A12 – the BeamWash! With the A12, JB-lighting has consequently implemented its own expectations of the perfect LED washlight: flat design, extreme light yield, a clearly defined beam and, for this compact design, an unprecedented zoom angle.
Ptics and light source
• Zoom system 4° - 48° (4°-33° 1/2 Peak, 8°-48° 1/10 Peak)
• Highly efficient lens system
• 61 RGBW multichip LEDs in the 15W class
• Hexagonal lens form for homogenous light field
Effects
• 450° Pan / 330° Tilt
• Separate CTC channel
• Optimised colour mixing performance due to multichip LEDs combined with newly designed optical system
• High-resolution dimmer 0% – 100%
• Colour-true dimming
• Electronic strobe with pulse and random effects
• Segment control of LEDs rings
Movement
• High-resolution three-phase stepper motors
• Precise and fast movements
• Low noise operation
Control
• DMX 512
• Integrated DMX-in module for JB-lighting Wireless DMX
• Illuminated graphics display, can be rotated electronically
• Stand-alone mode
Power consumption
• 850W maximum
• Typical consumption: 490W
Construction
• Compact housing
• Powercon In and Out
• 3-pin and 5-pin XLR connectors
• Temperature-controlled fans
• Omega bracket for fast and comfortable mounting in every position
• Dimensions: W 437 x D 308 x H 536mm
• Weight: 15,7 kg
Accessories
• Wireless TRX
• 2-unit flight case
