TECHNICAL DATA
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Only 3 parts, easy to assemble
- High impact materials – long-lasting and reliable
- Easy and extremely precise locking system "Quick Lock"
- 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
- Improved grip on latch
- Mates with 4 -pole chassis connector as well and makes contact with +1/-1

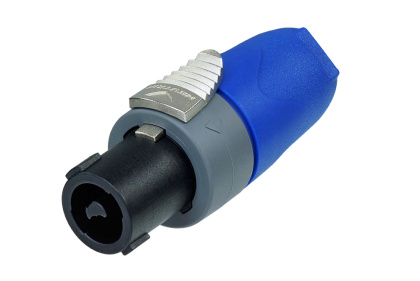

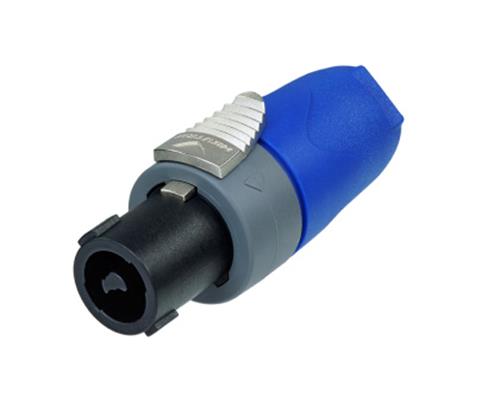

- Title : NL2FX
- Connection Type : speakON
- Gender : female
- Contact resistance : < 2 mΩ (after lifetime)
- Dielectric strength : 4 kVdc (peak)
- Insulation resistance : > 1 GΩ (after dampheat)
- Rated current per contact : 40 A rms continuous
- Rated current per contact : 50 A audiosignal, duty cycle 50 %
- Rated voltage : 250 V (Insulation)
- Attention : speakON is not to be used as an AC mains or power supply connector
- Able O.D : 6 - 10 mm
- Cable retention : ≥ 220 N (subject to cable O.D. and material)
- Lifetime : > 5000 mating cycles
- Wiresize : 1.5 - 4 mm²
- Wiresize : 16 - 12 AWG
- Wiring : screw type terminals or soldering
- Locking device : Quick Lock (latch)
Material
- Contact plating : 4 µm Ag
- Contacts : Brass (CuZn39Pb3)
- Insert : PBTP 20 % GR
- Locking element : Zinc diecast (ZnAl4Cu1)
- Shell : PBTP 20 % GR
- Strain relief : Polyacetal (POM)
- Flammability : UL 94 HB
- Solderability : Complies with IEC 68-2-20
- Temperature range : -30 °C to +80 °C
- Jack loa chuyên dụng (speakon), của hãng Neutrik được thiết kế cứng cáp và chắc chắn, mang lại hiệu quả kết nối loa tốt hơn, ứng dụng chủ yếu là kết nối các hệ thống loa sân khấu.
