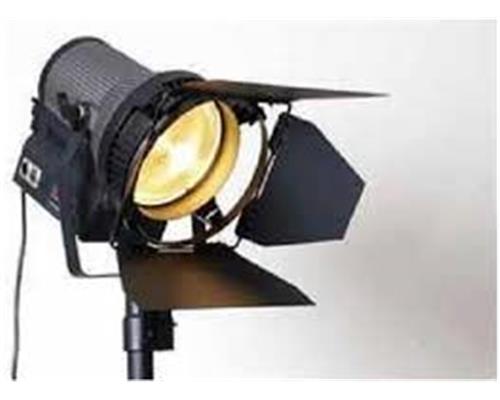

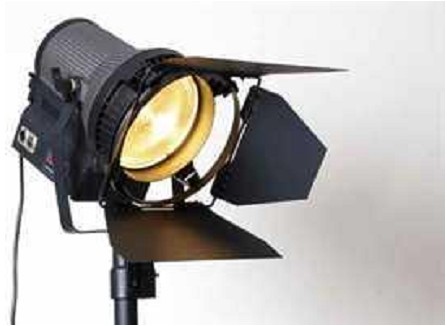

SquareLED Authentic 200W Fresnel

Mã sản phẩm :

Giá : Liên hệ

Hãng sản xuất: Squareled / Germany

Tình trạng : Còn hàng

Xem sản phẩm từ nhà sản xuất

Mô tả sản phẩm
Bình luận

The SquareLED Authentic 200 is equipped with a 200W LED module, which has a running time of ca. 50,000 hours. It is controlled directly on the device by DMX512. The viewing angle can be adjusted manually by using a spindle steplessly from 10 °to 60 °. Comparing the SquareLED Authentic 200 to a conventional 1KW halogen spotlight the unit shows. It´s true values: In the radiation angle of 10 °the unit achieved with ease the brightness of a 800 watt halogen luminaire.

With a wider radiation angle (40 °) it approaches more and more to the performance of a 1KW spot. Thanks to the 190mm wide, specially developed Fresnel lens the image of the beam is very homogeneous. The unit controls between 40° C and 45° C (body temperature) using two sensor-controlled and very silent fans (38.2 dBA at 1m distance). By using special software, the dimming curve is patterned to the dimming curve of a conventional halogen headlight, which is extremely important by mixing LED spotlights with conventional halogen spotlights.

The advantages are obvious: a lifetime of ca. 50,000 hours no other light source can offer

Sample calculation:CP70 = 200 h = around 12.00 €net enduser price (In order to achieve a life of 50,000 hours 250 pieces of replacement lamps necessary = 3000.00 €net enduser price) In this example the 70-80% power savings are still not considered. Compared to conventional lights the power consumption and weight are much lower. Heavy dimmer and multicore cables are not needed = more costs saving. Because of the perfect thermal management of this LED luminaire, the matter of heat problems in television studios are a thing of the past. The SquareLED Authentic 200 is the right choice for any professional user who is ready to contribute at a higher initial investment to the climate protection, but understands that in the long term he will save resources, money and manpower.

Features:

»» different colour temperature available: 3200K / 5600K

»» power class of a 800 watt halogen spotlight

»» angle: 10 - 60°

»»temperature controlled fan

»» dimmer curve of a halogen lamp

»» maximum noise: 38,2 dB

»» supplied with 4-leafq barndoor

»» DMX512 control

»» current consumption: 260 watts

»» fresnel lens with 190 mm diameter

»» measurements: 330 x 280 x 300 mm
