| Power Source |
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter) |
| Power Consumption |
74.4 W |
| Current Consumption |
Max. 3.1 A DC (when 24 V DC is supplied from the accessory AC adapter) |
| Gain |
Upstream: +16.5 dB
Downstream: +12.5 dB |
| Connection Terminal |
Central unit connection terminal: BNC jack
Bridge unit connection terminal: RJ45 connector |
| LED Indicator |

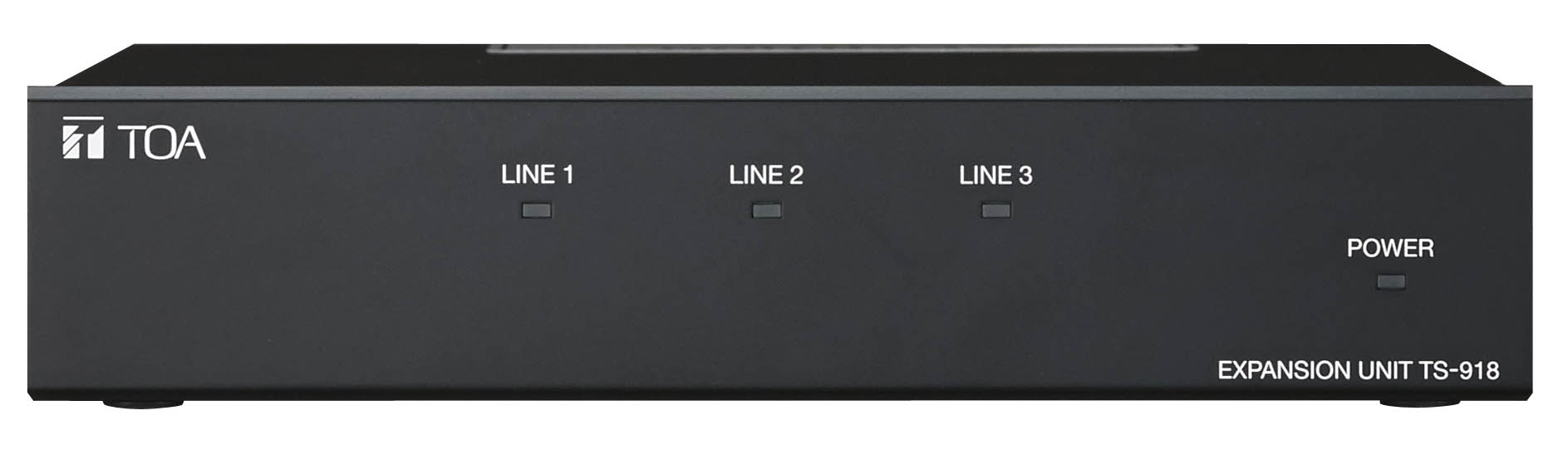

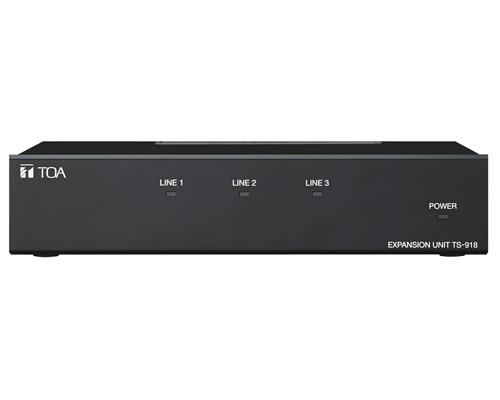

Connection status indicators (3 LEDs each on the front and rear panels), Power indicator |
| Number of ConnectableChairman/Delegate Units |
Up to 24 units (when using 21 units of TS-919B1 or 6 units of TS-919B4, both optional Bridge units) |
| Operating Temperature |
0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Temperature |
90 %RH or less (no condensation) |
| Finish |
Panel: Aluminum, black, 30% gloss, melamine-baked paint
case: Pre-coated steel plate, black |
| Dimensions |
210 (W) × 44 (H) × 296.5 (D) mm (8.27" × 1.73" × 11.67") |
| Weight |
1.6 kg (3.53 lb) |
| Accessory |
AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft)
detachable AC cord)…1, BNC plug-to-BNC plug cord (50 cm (1.64 ft)) …1 |
| Option |
Rack mounting bracket: MB-15B-BK (for rack mounting one TS-918 unit)
MB-15B-J (for rack mounting two TS-918 units) |
